OpenID Connect (OIDC)

Anaphora supports login through OAuth 2.0 / OpenID Connect providers. OIDC is simpler to set up than SAML and has similar enterprise features.

Overview

OIDC is built on OAuth 2.0 and has fewer settings than SAML. Anaphora discovers the provider configuration automatically through the well-known endpoint. Sessions are token-based, with secure, stateless authentication.

Supported providers

Provider	Issuer URL	Notes
Google	https://accounts.google.com	Google Workspace or personal
Auth0	https://your-tenant.auth0.com	Full-featured IdP
Keycloak	https://keycloak.company.com/realms/your-realm	Self-hosted option
Okta	https://your-org.okta.com	Enterprise IdP
Azure AD	https://login.microsoftonline.com/{tenant}/v2.0	Microsoft cloud
OneLogin	https://your-domain.onelogin.com/oidc/2	Enterprise SSO
Ping Identity	https://auth.pingone.com/{env-id}/as	Enterprise
Custom	Any OIDC-compliant issuer	Must support discovery

Configuration

Step 1: Create an OAuth application

Create an OAuth/OIDC application in your identity provider.

Google

1. Go to Google Cloud Console
2. APIs & Services > Credentials > Create Credentials > OAuth Client ID
3. Application type: Web application
4. Authorized redirect URIs: https://anaphora.company.com/auth/login-oidc/callback
5. Copy Client ID and Client Secret

Auth0

1. Applications > Create Application
2. Choose "Regular Web Application"
3. Settings tab:
   • Allowed Callback URLs: https://anaphora.company.com/auth/login-oidc/callback
   • Allowed Logout URLs: https://anaphora.company.com/auth/login
4. Copy Domain, Client ID, and Client Secret

Keycloak

1. Clients > Create Client
2. Client ID: anaphora
3. Client Protocol: openid-connect
4. Access Type: confidential
5. Valid Redirect URIs: https://anaphora.company.com/auth/login-oidc/callback
6. Backchannel logout URL: https://anaphora.company.com/auth/logout-oidc/backchannel, with Backchannel logout session required on (optional, see Logout)
7. Copy Client Secret from Credentials tab

Okta

1. Applications > Create App Integration
2. Sign-in method: OIDC
3. Application type: Web Application
4. Sign-in redirect URIs: https://anaphora.company.com/auth/login-oidc/callback
5. Copy Client ID and Client Secret

Azure AD

1. App registrations > New registration
2. Redirect URI: Web > https://anaphora.company.com/auth/login-oidc/callback
3. Certificates & secrets > New client secret
4. Copy Application (client) ID and secret value

Step 2: Configure Anaphora

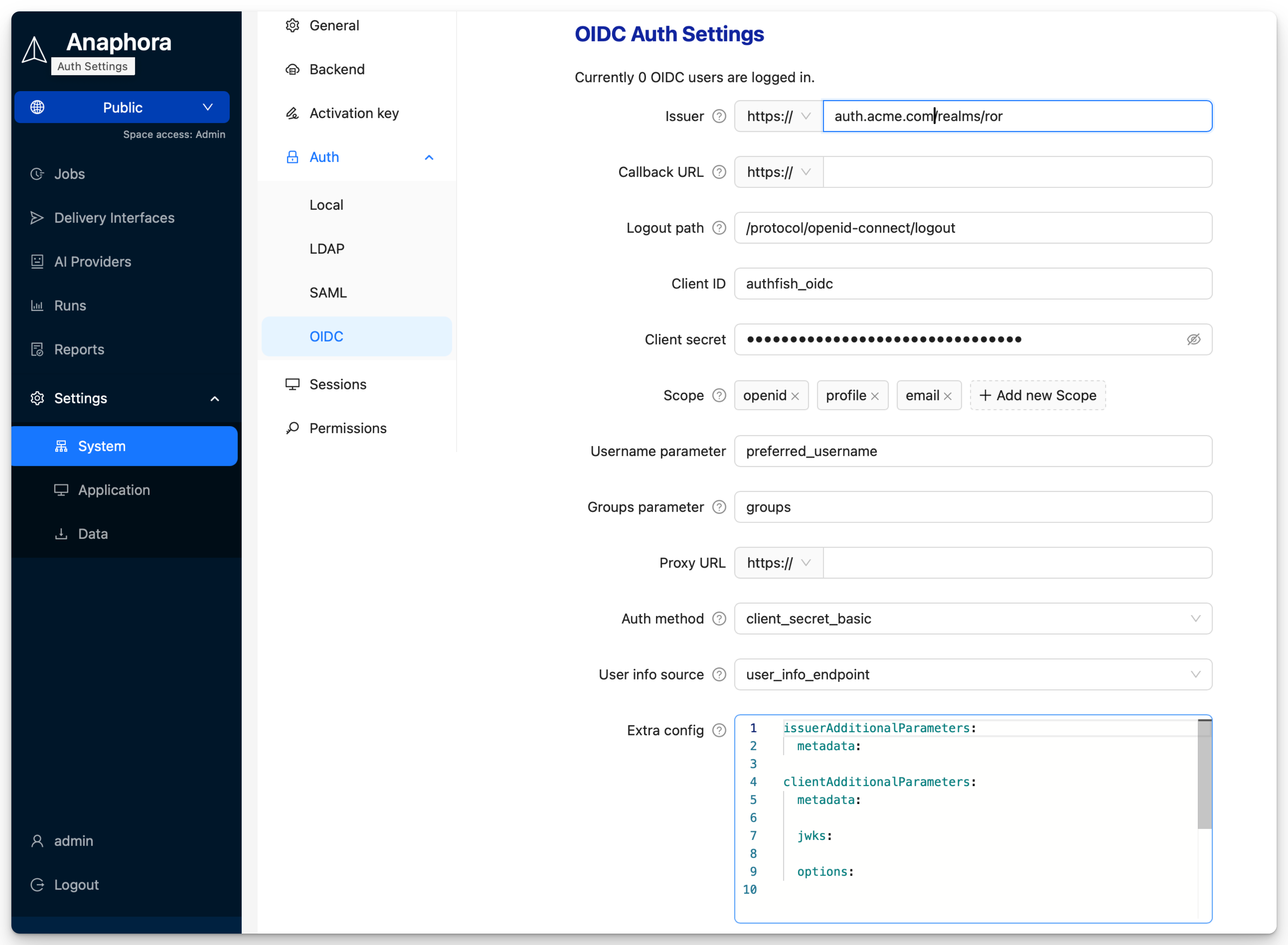

1. Go to Settings > System > Auth > OIDC
2. Enter the configuration:

Field	Description	Example
Issuer	URL of the provider. Other paths are relative to it. Required	https://accounts.google.com
Callback URL	Full callback URL. Empty uses the default (see below)	https://anaphora.company.com/auth/login-oidc/callback
Logout path	Path of the provider logout endpoint. With the default, Anaphora uses the end_session_endpoint that the provider publishes (see Logout). Default: /protocol/openid-connect/logout	/protocol/openid-connect/logout
Client ID	OAuth client identifier. Required	abc123def456
Client secret	OAuth client secret (stored encrypted). Required
Scope	Requested scopes. Default: openid, profile, email	openid email profile
Username parameter	Claim for the username. Default: preferred_username	preferred_username
Groups parameter	Claim for the groups/roles. Default: groups	groups
System groups	Groups whose users get the system role (see System groups)	/anaphora-admins
Proxy URL	Proxy for the requests to the provider	http://proxy.company.com:3128
Tls insecure skip verify	Turns off the check of the TLS certificate of the provider. Not recommended (see The TLS certificate of the issuer)
Tls CA cert	CA certificate (PEM) of the provider or the proxy, trusted next to the public CAs
Proxy tls insecure skip verify	Turns off the check of the TLS certificate of an HTTPS proxy. Only this setting does that
Clock tolerance seconds	Clock difference with the provider, in seconds, that the ID token and the logout token can have. Default: 0	30
Auth method	Token endpoint auth method (see below)	client_secret_basic
User info source	Source of the user profile (see below)	user_info_endpoint
Extra config	YAML object with more options (see below)

3. Click Save
4. To activate OIDC, add oidc to Strategies in Settings > System > General

Settings from the environment

You can also set OIDC with environment variables. Then the environment owns the OIDC settings, and the settings page cannot change them. See Configure from the environment.

Callback URL

The IdP redirects users to the Callback URL after authentication.

Default: https://<anaphora-external-url>/auth/login-oidc/callback

Add this URL to the allowed redirect URIs of your IdP:

Provider	Setting location
Google	Authorized redirect URIs
Auth0	Allowed Callback URLs
Keycloak	Client Settings > Valid Redirect URIs
Okta	Sign-in redirect URIs
Azure AD	Redirect URIs

Keycloak

In Keycloak, go to Clients > your client > Settings > Valid Redirect URIs and add the callback URL.

Step 3: Configure scopes

Set the Scope field to the scopes you need.

Default: openid, profile, email

Scope	Data returned
openid	Required for OIDC
email	User email address
profile	Name, picture, etc.
groups	Group memberships (provider-specific)

Custom scopes

Be careful with custom scopes. A scope that does not exist can cause authentication errors, such as redirect loops back to the login URL after authorization.

Configure from the environment

Instead of the settings page, you can configure OIDC with environment variables. This is an Enterprise feature.

Variable	Required	Default	Description
OIDC_ISSUER	Yes		The issuer URL, as the browser reaches it
OIDC_CLIENT_ID	Yes		The client ID
OIDC_CLIENT_SECRET	Yes		The client secret
OIDC_INTERNAL_ISSUER	No		The issuer URL as the Anaphora container reaches it, when the two are not the same
OIDC_SCOPES	No	openid profile email	The scopes to request, separated by spaces
OIDC_USERNAME_CLAIM	No	preferred_username	The claim that names the user
OIDC_GROUPS_CLAIM	No	groups	The claim that lists the user's roles
OIDC_TLS_CA_CERT	No		A CA certificate (PEM) to trust next to the public CAs, for the TLS certificate of the issuer
OIDC_TLS_INSECURE_SKIP_VERIFY	No	false	true turns off the check of the TLS certificate of the issuer
OIDC_CLOCK_TOLERANCE_SECONDS	No	0	The clock difference with the provider, in seconds, that the ID and logout tokens can have
OIDC_SYSTEM_GROUPS	No		Groups, separated by commas. A user in one of them gets the system role (the Settings menu)

• The three required variables switch OIDC on. A partial set logs a warning and leaves OIDC off.
• A value that is not valid also leaves OIDC off: a CA that does not parse or that holds more than complete certificates, a switch that is not true or false (1 or 0), or a tolerance that is not a whole number of seconds. OIDC is then off, also when Authfish keeps an older copy of these settings in its database.
• An optional variable without the three required ones changes nothing, and the start log names it.
• The identity provider must allow the callback <PUBLIC_URL>/auth/login-oidc/callback.
• The identity provider must send the user's roles (admin, user, superuser) in the claim that OIDC_GROUPS_CLAIM names.
• The environment owns these settings. The settings page cannot change them, and Anaphora does not save them in its database.
• A new installation starts with OIDC in its list of sign-in methods. On an existing installation, switch OIDC on under Settings, in the list of sign-in methods.
• Anaphora reads the variables at every start.

The other settings use fixed values: client_secret_basic as auth method and the userInfo endpoint as user info source. The logout goes to the logout endpoint that the provider publishes. With OIDC_INTERNAL_ISSUER, it goes to <OIDC_ISSUER>/protocol/openid-connect/logout, the Keycloak form.

System role from the environment

OIDC_SYSTEM_GROUPS lists the groups whose users get the system role, as the groups claim names them, for example OIDC_SYSTEM_GROUPS=admin. Use a name that is unique at the provider: a Keycloak realm role, or the full path of a group (/admins), because group names can repeat under different parents. Names match whole and with case. When the variable is not set, no OIDC user gets the system role. See System groups.

The TLS certificate of the issuer

Anaphora checks the TLS certificate of an https issuer. The certificate must chain to a public CA or to OIDC_TLS_CA_CERT. It must also name the address in the issuer URL: for an IP address, an IP address entry in its subjectAltName. The issuer URL here is OIDC_INTERNAL_ISSUER when it is set, else OIDC_ISSUER.

OIDC_TLS_CA_CERT takes the text of the PEM file, with its line breaks, or on one line with \n in place of each line break. A bundle of more than one certificate is accepted, and the OpenSSL TRUSTED CERTIFICATE form too. A private key in the text is refused.

OIDC_TLS_INSECURE_SKIP_VERIFY=true turns the check off, the name check included. The connection to the issuer is then not protected, so use it only for a test. When both are set, the CA wins: the check stays on, and the start log says that the switch is ignored. The start log line [oidc] issuer ... names each of these settings that is on.

Upgrade from 0.16 or older

From 0.17.0, an https issuer URL on an IPv4 address, on localhost, on a *.localhost name or on [::1] needs one of these:

• The certificate names that address and chains to a public CA: no action.
• The certificate names that address: set OIDC_TLS_CA_CERT to its CA. This is the preferred fix.
• The certificate names a host name only: put that host name in the issuer URL and set OIDC_TLS_CA_CERT, or set OIDC_TLS_INSECURE_SKIP_VERIFY=true.

Without one of them, OIDC sign-in stops, and local users can still sign in. The start log says OIDC issuer discovery failed: and the reason: self-signed certificate, unable to verify the first certificate (a private CA) or Hostname/IP does not match certificate's altnames. The upgrade script shows that line when the upgrade is done.

OIDC that you set up in the settings page needs no action: the upgrade turns on Tls insecure skip verify where the old rule skipped the check, and the start log warns about it. Set Tls CA cert instead.

Keycloak in the same Docker network

When the browser reaches Keycloak at a public URL and the Anaphora container reaches it at an internal URL, set OIDC_ISSUER to the public URL and OIDC_INTERNAL_ISSUER to the internal one, for example http://keycloak:8080/realms/your-realm. Anaphora uses the internal URL for discovery and for the calls from the server. Keycloak must publish the browser endpoints under the public URL (KC_HOSTNAME_BACKCHANNEL_DYNAMIC=true).

Claim mapping

Map OIDC claims to the Anaphora user fields.

Standard claims

Anaphora field	OIDC claim	Description
Username	preferred_username (set in Username parameter)	Unique identifier
Email	email	User email
Display name	name	Full name

Group claims

The group claim name is different for each provider:

Provider	Groups claim
Google	groups (requires Workspace)
Auth0	https://your-app/roles (custom)
Keycloak	groups or realm_access.roles
Okta	groups
Azure AD	groups

Custom claim mapping

1. Go to Settings > System > Auth > OIDC
2. Set the claim names:

Username parameter: preferred_username
Groups parameter: groups

Group-based roles

Map IdP groups to Anaphora roles.

Groups parameter

The Groups parameter is the claim that contains the group or role information. Default: groups. The claim is a list of groups, or one string for one group.

Important: Add Roles to ID Token

You must configure your IdP to include roles/groups in the ID token.

In Keycloak:

1. Go to Client Scopes > profile
2. Select Mappers > Add mapper > From predefined...
3. Add the groups mapping

Role mapping

Each IdP group becomes an Anaphora role with the same name.

1. Go to Settings > System > Permissions
2. In a space, add a permission for the role, and set its access:

IdP group/role	Access
anaphora-admins	Admin
anaphora-editors	Read Write
anaphora-viewers	Read Only

System role

A user in one of the System groups gets the system role: the Settings menu and Admin access to every space. See System groups.

Auth0 roles example

In Auth0, use Rules or Actions to add roles to tokens:

// Auth0 Action
exports.onExecutePostLogin = async (event, api) => {
  const roles = event.authorization?.roles || [];
  api.idToken.setCustomClaim('roles', roles);
};

Then, in Anaphora:

• Set Groups parameter to roles
• In Settings > System > Permissions, give admin the Admin access and editor the Read Write access

Advanced settings

Auth method

The Auth method sets how Anaphora sends the credentials to the token endpoint.

Default: client_secret_basic

Method	Description
client_secret_basic	Sends the client ID and secret in the Authorization header (URL-encoded). The standard method for most providers.
client_secret_post	Sends the client ID and secret in the request body (not encoded). Use it when your provider cannot decode encoded values (for example, LemonLDAP).

User info source

The User info source sets where Anaphora gets the user profile information.

Default: user_info_endpoint

Source	Description
user_info_endpoint	Makes one more call to the userInfo endpoint to get the latest profile data.
access_token	Reads the profile information from the access token.
id_token	Reads the profile information from the ID token.

Extra configuration

The Extra config field accepts a YAML object with two optional sections:

Section	Description
issuerAdditionalParameters	Change the OIDC issuer discovery
clientAdditionalParameters	Change the OIDC client configuration

issuerAdditionalParameters:
  metadata:
    jwks_uri: https://example.com/.well-known/jwks.json

clientAdditionalParameters:
  metadata:
    default_max_age: 0

For the available options, see:

• Issuer parameters
• Client parameters

caution

Use extra configuration options with caution. Incorrect settings may break OIDC authentication.

Session settings

Setting	Where	Description
Max age hours	Settings > System > Backend	How long an Anaphora session lasts. Default: 60
Logout path	Settings > System > Auth > OIDC	Logout from the IdP when you log out of Anaphora

For Keycloak, also add https://<anaphora-external-url>/auth/login to Valid post logout redirect URIs.

Logout

When a user logs out of Anaphora, Anaphora ends the session, then sends the browser to the end_session_endpoint that the provider publishes, with client_id, post_logout_redirect_uri and id_token_hint. A Logout path that you set to another value wins. A provider without a logout endpoint (Google) ends the session in Anaphora only.

A logout at the provider (in another application of the realm, by an admin, or on the account page) can end the Anaphora session too. Set the back-channel logout URL of the client to:

<PUBLIC_URL>/auth/logout-oidc/backchannel

In Keycloak, this is Backchannel logout URL, with Backchannel logout session required on. The logout token must be signed by the issuer for this client and be at most 5 minutes old, and each token works once. It ends every session with its sid (or, without one, its sub), in every browser.

Discovery settings

Anaphora reads the provider endpoints from <Issuer>/.well-known/openid-configuration. There are no separate fields for them. To change an endpoint, for example jwks_uri, use issuerAdditionalParameters.metadata in Extra config.

Testing

Test OIDC configuration

1. Log out, then click Continue with OIDC on the login page
2. Anaphora sends you to your IdP
3. Log in with IdP credentials
4. Make sure that the IdP sends you back to Anaphora
5. Make sure that the user gets the correct spaces

Debug mode

At each OIDC login, the Anaphora log shows the user profile at the info log level:

1. Make sure that Log level in Settings > System > General is info, debug or trace
2. Try to log in
3. Find the line OIDC login from ... in the Anaphora log
4. Make sure that the groups/roles are present

Troubleshooting

Issue	Solution
Invalid redirect URI	Make sure that the callback URL is the same in both systems
Invalid client	Check the Client ID and Secret
Discovery failed	Check Issuer, make sure that /.well-known/openid-configuration is accessible
Groups not received	Check Scope, Groups parameter and the IdP configuration
Token expired, or not yet valid	Check clock synchronization (NTP), or set Clock tolerance seconds
OIDC issuer discovery failed: in the log	See The TLS certificate of the issuer
User has no username	Check Username parameter. A profile without that claim is refused

When the sign-in at the provider fails (for example an expired login page), the browser goes back to the Anaphora login page, which shows the reason.

Common errors

"invalid_client"

• The Client ID or Secret is incorrect
• The Client Secret can be expired (make a new one)

"redirect_uri_mismatch"

• The Callback URL in Anaphora is not the same as in the IdP configuration
• Check for trailing slashes, and for http instead of https

"invalid_scope"

• The IdP does not allow a requested scope
• Remove the unsupported scopes

Provider-specific notes

Google Workspace

To get group memberships:

1. Enable the Directory API in Google Cloud Console
2. Configure domain-wide delegation
3. Add the https://www.googleapis.com/auth/admin.directory.group.readonly scope

Azure AD

For group claims:

1. App registration > Token configuration > Add groups claim
2. Choose "Groups assigned to the application" for large directories

Keycloak

Keycloak includes groups by default. Configure client mappers for custom claims.

Best practices

• Use HTTPS for all endpoints
• Store Client Secret securely (Anaphora encrypts it)
• Request only the scopes you need
• Map groups to roles for scalable access management
• Monitor token expiration and refresh behavior

Next steps

• SAML: SAML 2.0 SSO, an alternative to OIDC
• Spaces: configure space-based access
