S3 Object Storage

Archive reports to S3-compatible object storage for long-term retention, compliance, and historical reference.

Use cases

Scenario	Benefit
Compliance archiving	Immutable records for audit requirements
Historical reference	"What did this dashboard look like on date X?"
Long-term retention	Store beyond housekeeping limits
Cross-system access	Other tools can retrieve archived reports

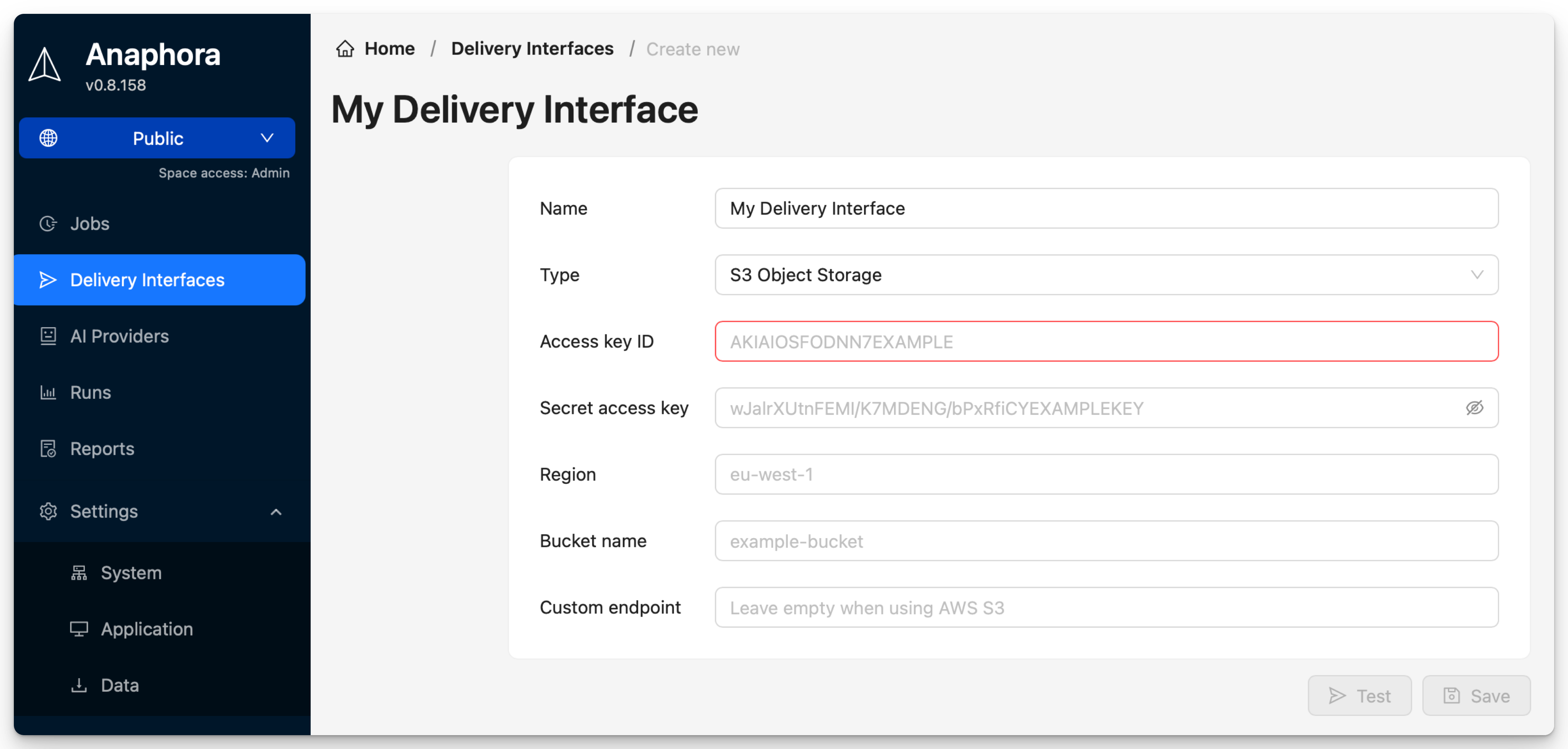

Configuration

Field	Description	Required
Name	Interface identifier	Yes
Access key ID	AWS access key or S3-compatible credentials	Yes
Secret access key	AWS secret key (stored encrypted)	Yes
Region	AWS region (e.g., eu-west-1)	No
Bucket name	Target S3 bucket	Yes
Custom endpoint	For S3-compatible storage (MinIO, etc.)	No

Provider configurations

AWS S3

Access key ID: AKIAIOSFODNN7EXAMPLE
Secret access key: wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY
Region: eu-west-1
Bucket name: my-reports-bucket
Custom endpoint: (leave empty)

MinIO (self-hosted)

Access key ID: minioadmin
Secret access key: minioadmin
Region: us-east-1
Bucket name: anaphora-reports
Custom endpoint: https://minio.internal:9000

DigitalOcean Spaces

Access key ID: DO00EXAMPLE
Secret access key: your-secret-key
Region: nyc3
Bucket name: my-space-name
Custom endpoint: https://nyc3.digitaloceanspaces.com

Backblaze B2

Access key ID: your-key-id
Secret access key: your-application-key
Region: us-west-002
Bucket name: your-bucket
Custom endpoint: https://s3.us-west-002.backblazeb2.com

IAM permissions

For AWS S3, the IAM user/role needs these permissions:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:PutObject",
        "s3:GetObject",
        "s3:ListBucket"
      ],
      "Resource": [
        "arn:aws:s3:::my-reports-bucket",
        "arn:aws:s3:::my-reports-bucket/*"
      ]
    }
  ]
}

Least privilege

Anaphora only uploads files (s3:PutObject). For write-only archiving, you can remove s3:GetObject and s3:ListBucket.

Testing

1. Configure the S3 interface with your credentials
2. Click Test
3. In Test pdf, click Select pdf and select a PDF file
4. Optionally, enter a Test Key (the object name, without .pdf)
5. Click Upload to S3
6. Make sure the file appears in your bucket

Troubleshooting

Issue	Solution
Access Denied	Verify IAM permissions, check bucket policy
Invalid credentials	Double-check access key and secret
Bucket not found	Verify bucket name and region match
Connection timeout	Check custom endpoint URL, verify network access
SSL certificate error	For self-signed certs, configure trust settings

Best practices

Security

• Use dedicated IAM credentials with minimal permissions
• Enable bucket versioning for compliance requirements
• Consider enabling server-side encryption (SSE-S3 or SSE-KMS)
• Restrict bucket access with bucket policies
